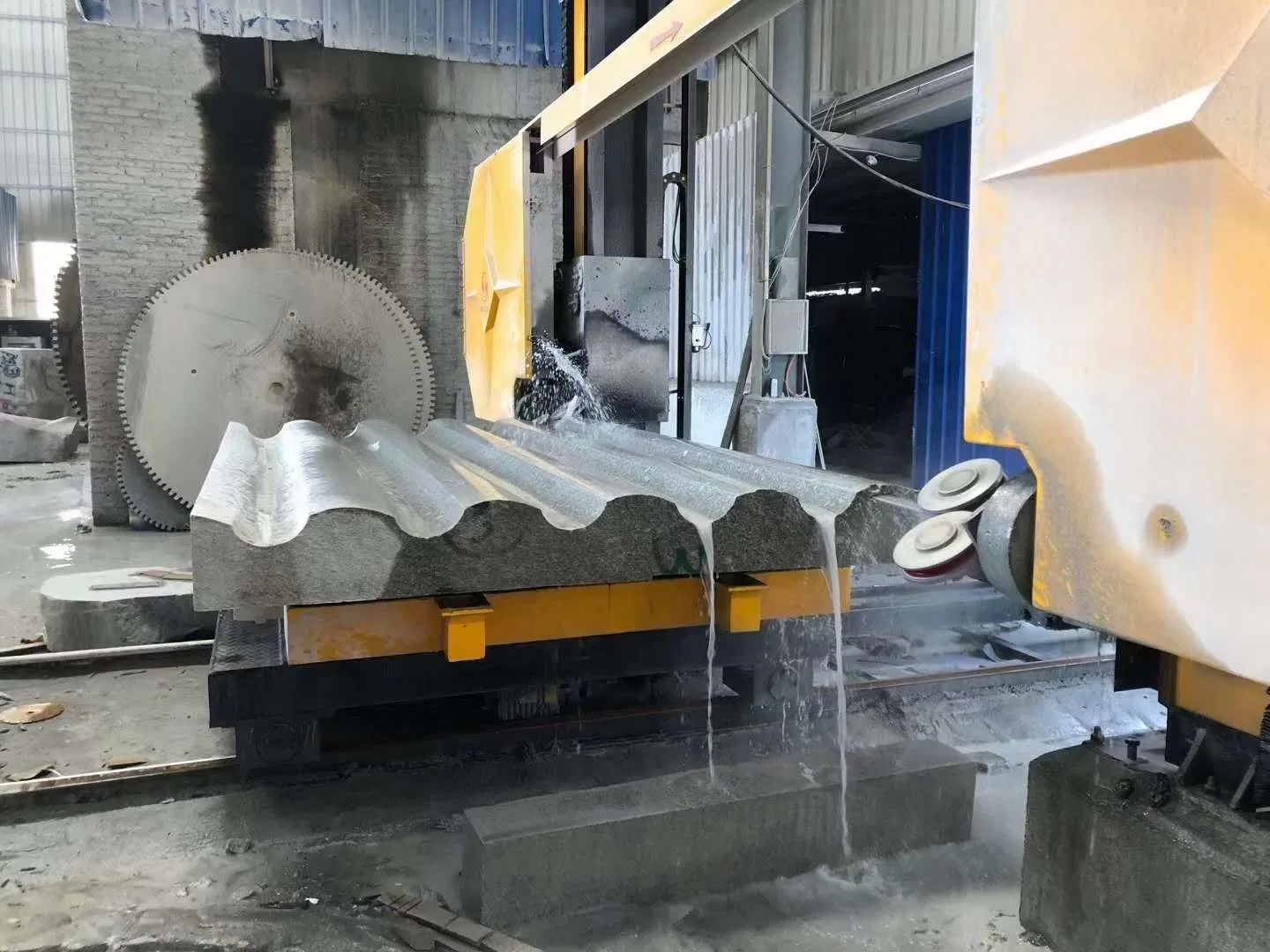

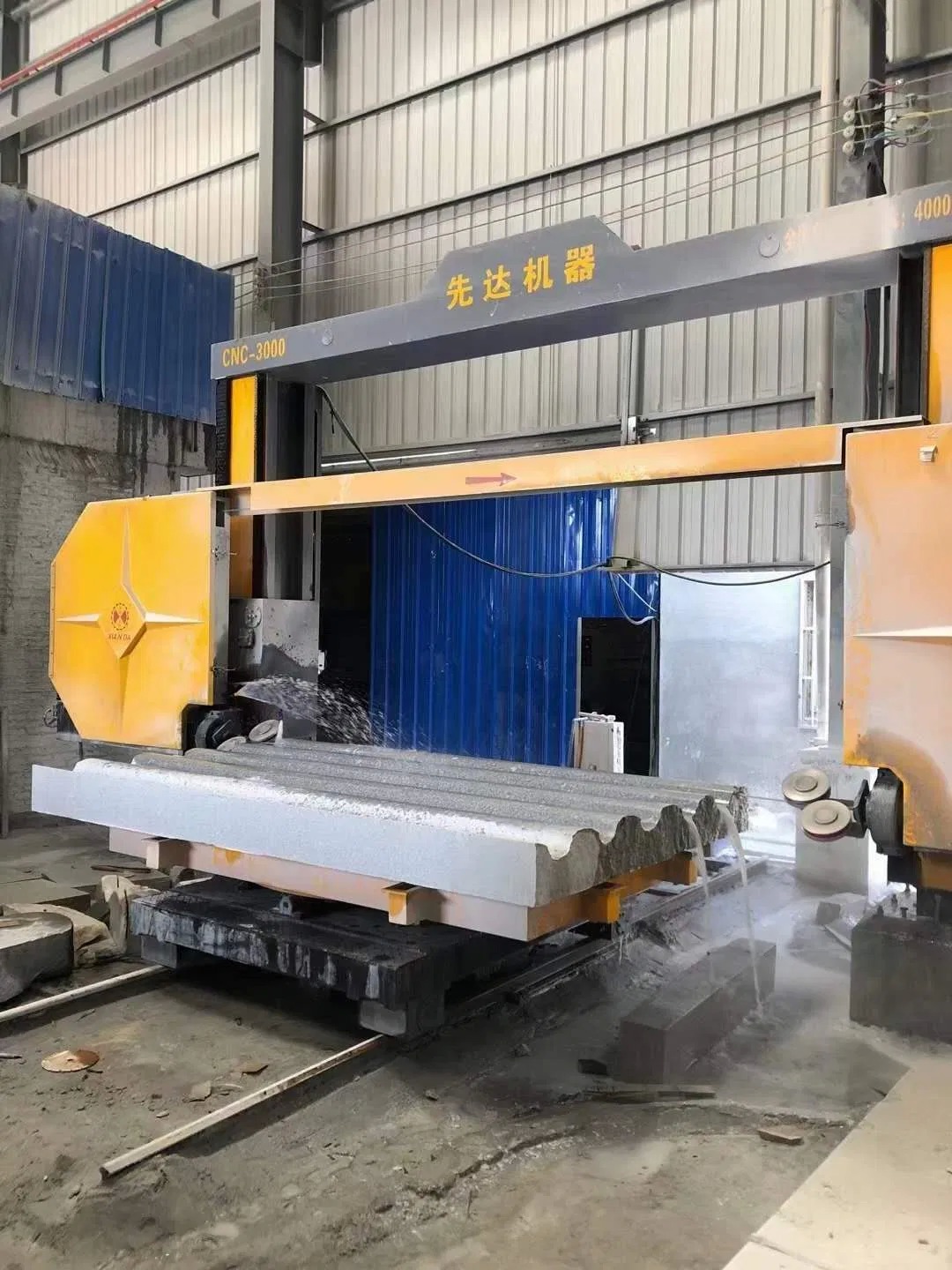

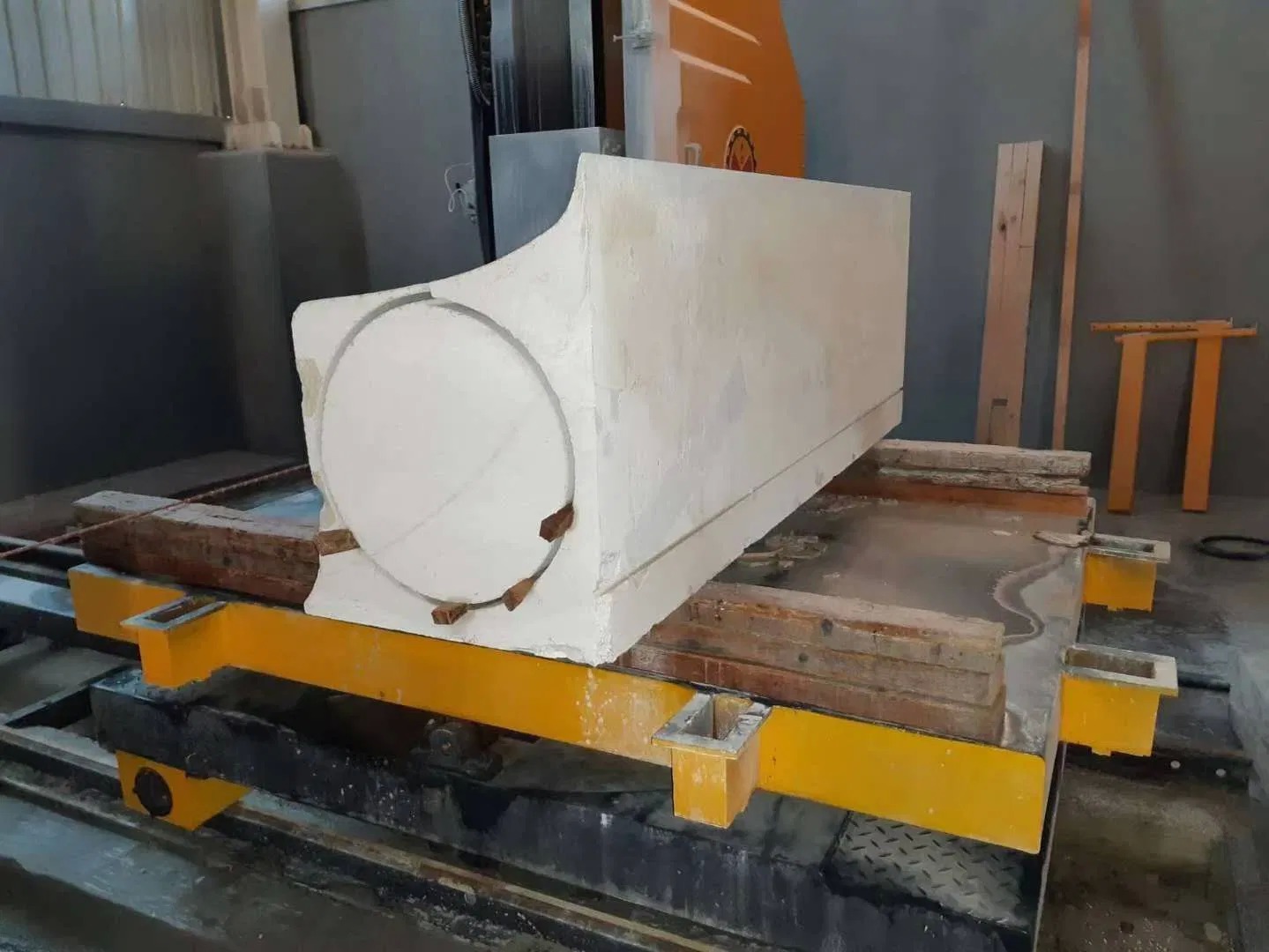

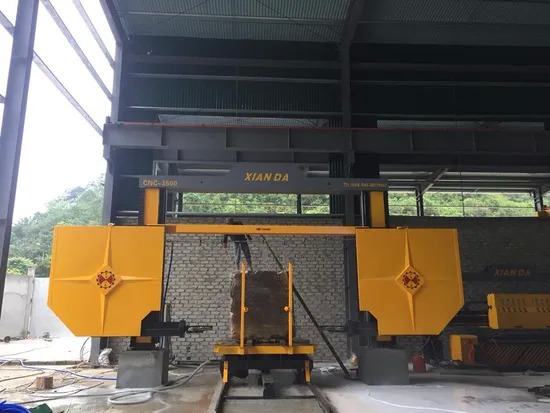

The CTS-3500-22FW diamond wire-saw trimming machine features PLC control with optional CNC capability. Its specially designed 360° worktable allows for trimming all four surfaces of stone blocks and can also cut blocks into slabs. This machine is ideal for cutting and trimming stone blocks, with CNC compatibility for processing column slabs, pillars, roman columns, numerals, letters, Chinese characters, and other custom stone shapes.
| Parameter | Unit | CTS-3500-22FW | BWT-3500-22FW |
|---|---|---|---|
| Max processing size | mm | 3500×3500×2200 | 3500×3500×2200 |
| Dimension of worktable | mm | 2500×2000 | 2500×2000 |
| Main motor | kw | 15 | 15 |
| Gross motor | kw | 24 | 23 |
| Outline dimension | mm | 9500×6800×5600 | 9500×6800×5600 |
| Gross weight | kg | 8000 | 8000 |
| Water consumption | kw | 6 | 6 |
