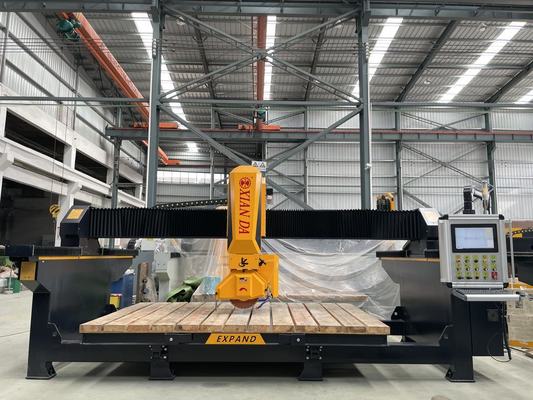

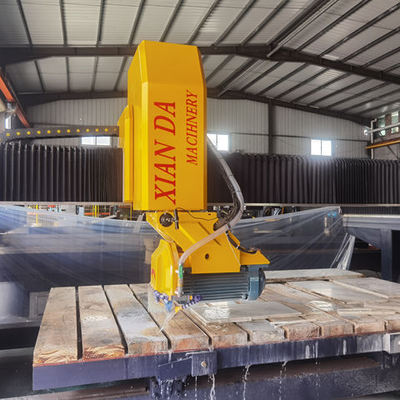

4-Axis CNC Bridge Saw High Precision Bridge Cutting Machine With Absolute Servo for Countertop and Sink Cutting
Product Overview
Fujian Xianda Expand 600HL adopts four-axis linkage CNC system control with bus absolute value servo (with power off memory function), high-precision linear guide, rack driver, and oil-immersed track structure. This machine offers multifunction capabilities, high precision, and strong performance.
Key Specifications
- Type: Stone Cutting Machine
- Use: Granite
- Voltage: 380 V
- Power: 22kw
- Max Cutting Thickness: 175mm
- Place of Origin: Fujian, China
- Weight: 3000 kg
- Warranty: 1 Year
- Brand Name: Xianda
Technical Parameters
| Parameter |
Unit |
Expand 600HL |
| Blade diameter |
mm |
350-600 |
| Max processing size |
mm |
3400*2000*180 |
| Dimension of worktable |
mm |
3400*2000 |
| Worktable tilting degree |
° |
0,85° |
| Cutting head rotation degree |
° |
0~360° |
| Main motor |
kw |
22 |
| Outline dimension |
mm |
5800*3600*3350 |
Product Images
About Xianda Machinery
Fujian Xianda Machinery Co.Ltd was established in 1985 and has been dedicated to developing and producing stone processing machinery including column making machines, wire saw stone cutting machines, block trimming machines, bridge saw cutting machines, and profiling stone cutting machines.
With ISO9001 certification and CE compliance, we maintain "Advanced Technology and High Quality" as our core principle. Our 'Xianda' brand machines have earned international recognition including the Gold Plant Quality Award.
Certifications
Our Services
- Training for machine installation and operation
- Overseas engineer support available
- 24-hour online after-sales service
- One year warranty on all machines
- Quality testing video provided before shipment
Frequently Asked Questions
How to place order to your company?
1. Inquiry-Professional quotation
2. Confirm the price, lead time, logo, payment term etc.
3. Xianda sales send the Proforma Invoice with seal.
4. Customers make the payment as a deposit and send us Bank receipt
5. Sales confirm the receipt of down payment After approval, we will arrange the production & inform the estimated time
How is After-sales Service Provided?
Engineer can dispatch for assembly machinery
Are you Manufacture Factory?
Yes that we are the stone machinery factory for over 30 years
What about the warranty time of the machine?
We provide one year for parts warranty service
What can this machine be used to?
This machine is designed to cut lines on stone like columns lines, big arc shaped slabs and special stone shapes.
